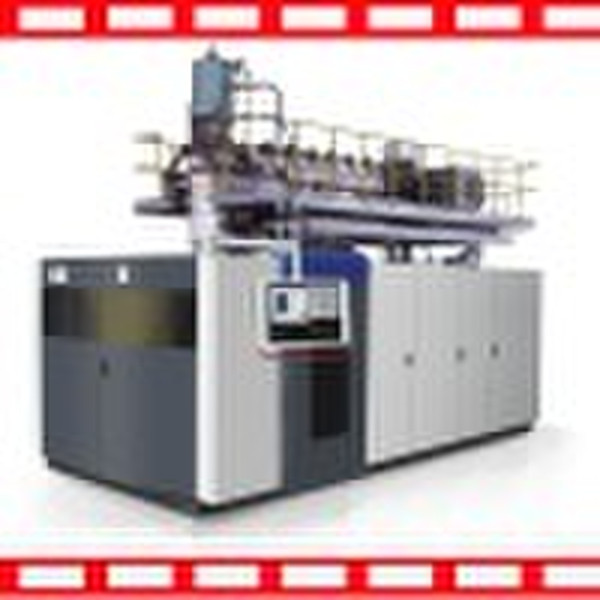

Semi-auto Blowing plastic machine

The Machine Can Produce all kinds of PE Container, such as PE Bottles, PE Barrels, PE Kettles etc. Setting: 1.Clamping----------Double station+Hight-precision guide+large arm cylinder axle 2.Extrusion system--Hard gear surface reducer+Japan inverter 3.Die system--------Central-incoming extrusion die with special steel 4.Hydraulic system--Japan hydraulic valve seal and proportional control 5.Control system----Japan PLC+Imported HMI+PLC automatic The semi-auto blowing plasticmachine 230L-300L drums, tool boxes and auto parts series consists of DHB-250A and DHB-250B etc., which can be used for producing drums, tool boxes and hollow parts of all kinds. Materials of PE, PP, and ABS can be used. Maximum capacity of accumulator head can be 12L while volume of products can be 230L. Its control system adopts closed loop control imported from Europe and hydraulic system is pressure-flow double proportional control equipped with variable plunger pump to ensure fast and smooth operation of the machine and energy consumption of the hydraulic system can be reduced by 30% or above, saving considerable electricity. Specification DHB-250A DHB-250B Material PE / PP PE / PP Max.container capacity L 230 300 Number of die set 1 1 Output pcs/hr 260 260 Machine Dimension m 7.6×3.0×5.2 7.8×3.2×5.5 Total weight ton 36 40 Accumulator head DHB-250A DHB-250B Accumulator capacity L 22 22 Power of die heating KW 46 46 Number of heating zone zone 5 5 Die diameter mm 600 600 Injection pressure Mpa 8 8 Max.injection speed Kg/sec 2 2 Clamping Unit DHB-250A DHB-250B Clamping force KN 760 880 Platen opening stroke mm 700-1800 700-1850 Platen size mm 1300×1620 1360×1900 Max mould size mm 1200×1700 1260×1980 Mould thickness mm 250 250 Extruder Unit DHB-250A DHB-250B Screw diameter mm 120 120 Screw L/D ratio L/D 30:1-32:1 30:1-32:1 Extruding Volume Kg/hr 300 300-400 Screw rotation rate r/min 6-56 10-86 Extruder heating power KW 36 36 Extruder driving power KW 132 90-132 Power consumption DHB-250A DHB-250B Driving power KW 202 180-202 Heating power KW 98 98 General assembly power KW 300 280 Average energy consumption KW 150 135 Air pressure Mpa 1.0 1.0 Air consumption m3/min 2 2 Cooling water consumption m3/min 1.8 1.8
