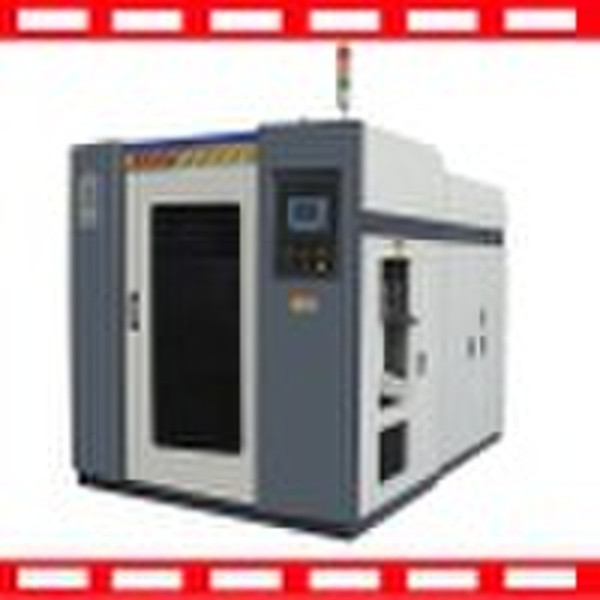

Extrusion blow moulding machine

The 10L single-station extrusion blow moulding machine is a single station machine, and suitable Setting: 1.Clamping---------Single station+Hight-precision guide+large arm cylinder axle 2.Extrusion system--Hard gear surface reducer+Japan inverter 3.Die system--------Central-incoming extrusion die with special steel 4.Hydraulic system--Japan hydraulic valve seal and proportional control Control system----SiemensPLC+Imported HMI+PLC automatic Specification DHS-2L DHS-5L DHS-10L DHS-16L Material PEPP PEPP PEPP PEPP Max.container capacity L 2 5 10 16 Number of die set 1234 1234 1234 1234 Output pcs/hr 1400 1000 800 700 Machine Dimension m 2.5×1.6×2.4 2.9×1.85×2.4 4.2×2.95×3 4.8×3.2×3.1 Total weight ton 3 4.5 6 7 Accumulator head DHS-2L DHS-5L DHS-10L DHS-16L Number of die heating zone 3 3 3 4 Power of die heating KW 4.2 5.8 6-7 6-7 Max die-pin diameter mm 60 80 140 140 Center distance of twin-die mm 130 160 240 260 Center distance of tri-die mm 85 110 160 180 Center distance of four-die mm 65 85 120 130 Clamping Unit DHS-2L DHS-5L DHS-10L DHS-16L Clamping force KN 38 70 110 155 platen opening stroke mm 135-370 145-510 230-600 230-600 platen size mm 280×380 320×390 450×490 500×490 Max mould size mm 300×320 350×370 520×500 600×500 Mould thickness mm 135-210 155-300 235-380 235-380 Extruder Unit DHS-2L DHS-5L DHS-10L DHS-16L Screw diameter mm 50 60 70 75 Screw L/D ratio L/D 24:1 24:1 24:1 25:1 Extruding Volume Kg/hr 30-50 60-80 100-120 100-130 Number of heating zone zone 3 3 3 4 Extruder heating power KW 3-4.4 5-6.6 6-8.2 7.3-8.6 Extruder driving power KW 5.5 15-18.5 22-30 22-30
