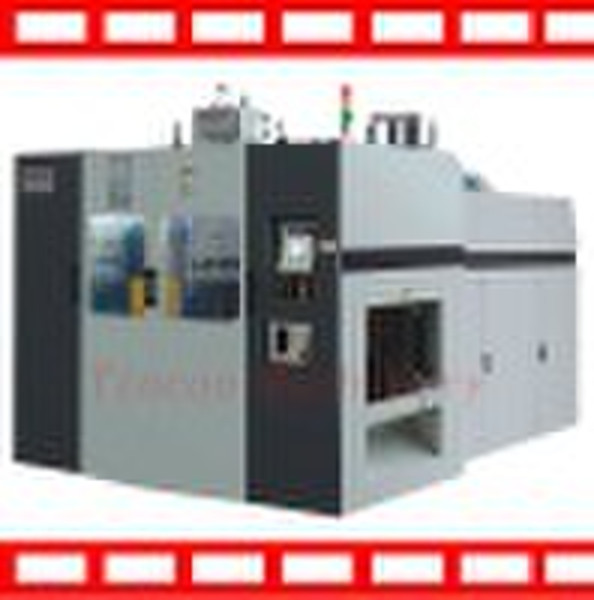

Blow molding machines

The 12L-16L double stationblow molding machines is different from the single station machine in that it has one additional station with high-precision linear guide, covering four major series of DHD-12LIIand DHD-16LII. The same as the single station machines, it can be used to produce a wide variety of materials, such as PE, PP, and PA. The largest capacity of the product can be 16L, and its production capacity is 60 to 70% more than the single station machine. In accordance with different type of products, die heads can be changed to achieve multi-type production. Setting: Clamping------------Double station+Hight-precision guide+large arm cylinder axle Extrusion system--Hard gear surface reducer+Japan inverter Die system----------Central-incoming extrusion die with special steel Hydraulic system--Japan hydraulic valve seal and proportional control Control system----Japan PLC+Imported HMI+PLC automatic SpecificationDHD-12LIIDHD-16LIIMaterialPEPPPEPPMax.container capacityL1216Number of dieset1234612346Machine Dimensionm4.1×2.5×34.5×2.7×3.1Total weightton1013Accumulator headDHD-12LIIDHD-16LIINumber of die heatingzone34Power of die heatingKW6-76-7Max die-pin diametermm140140Center distance of twin-diemm240260Center distance of tri-diemm160180Center distance of four-diemm120130Center distance of six-diemm8590Clamping UnitDHD-12LIIDHD-16LIIClamping forceKN110155platen opening strokemm219-600219-620platen sizemm460×500520×480Max mould sizemm560×500600×480Mould thicknessmm220-380220-380Extruder UnitDHD-12LIIDHD-16LIIScrew diametermm9090Screw L/D ratioL/D25:125:1Extruding VolumeKg/hr130-160130-160Number of heating zonezone44Extruder heating powerKW8.2-9.38.2-9.3Extruder driving powerKW37-4537-45PowerDHD-12LIIDHD-16LIIOil pump drive powerKW1515Fan power for screwKW0.60.6Total powerKW6767Air pressureMpa0.60.6Air consumptionm1.01.0Average energy consumptionKW3538
