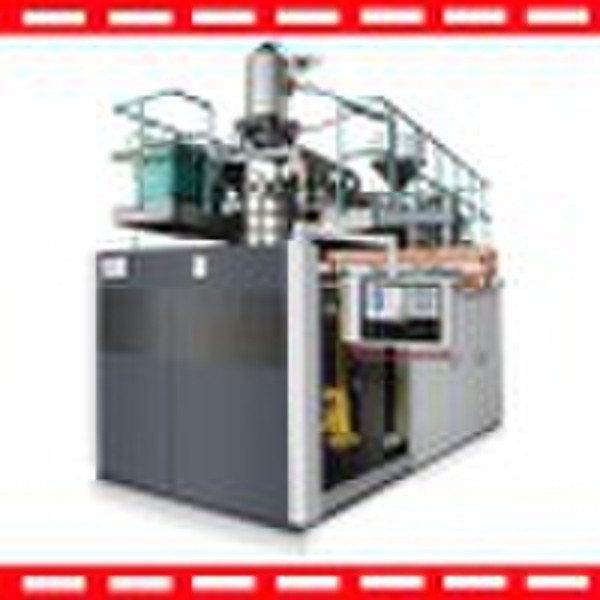

Blow Molding Equipment

Semi-automatic blow molding equipment The25L drums, tool boxes and auto parts series consists of DHB80 Blow molding Machine.,which can be used for producing drums, tool boxes and hollow parts of all kinds. Materials of PE, PP, and ABS can be used. Maximum capacity of accumulator head can be 12L while volume of products can be 25L. Its control system adopts closed loop control imported from Europe and hydraulic system is pressure-flow double proportional control equipped with variable plunger pump to ensure fast and smooth operation of the machine and energy consumption of the hydraulic system can be reduced by 30% or above, saving considerable electricity. The Machine Can Produce all kinds of PE Container, such as PE Bottles, PE Barrels, PE Kettles etc. Setting: Clamping----------Double station+Hight-precision guide+large arm cylinder axle Extrusion system--Hard gear surface reducer+Japan inverter Die system--------Central-incoming extrusion die with special steel Hydraulic system--Japan hydraulic valve seal and proportional control Control system----Japan PLC+Imported HMI+PLC automatic Specification DHB80 DHB90 DHB100 DHB110 Material PE / PP PE/ PP PE/ PP PE/ PP Max.container capacity L 25 50 120 160 Number of die set 1 1 1 1 Output pcs/hr 500 400 360 300 Machine Dimension m 4.2×2.3×3.6 4.6×2.5×3.8 5.8×2.5×4.6 6.9×2.9×4.8 Total weight ton 12 13.8 18 20 Accumulator head DHB80 DHB90 DHB100 DHB110 Accumulator capacity L 5 6.6 12 18 Power of die heating KW 18 22 26 38 Number of heating zone zone 4 4 4 5 Die diameter mm 300 350 450 510 Injection pressure Mpa 8 8 8 8 Max.injection speed Kg/sec 1.5 1.5 1.5 1.5 Clamping Unit DHB80 DHB90 DHB100 DHB110 Clamping force KN 210 350 500 720 platen opening stroke mm 250-700 400-1000 500-1400 600-1400 platen size mm 740×600 880×780 1020×1060 1100×120 Max mould size mm 560×630 700×960 800×1260 900×1400 Mould thickness mm 250-350 455-510 360-700 450-750 Extruder Unit DHB80 DHB90 DHB100 DHB110 Screw diameter mm 80 90 100 120 Screw L/D ratio L/D 25:1 30:1 30:1 30:1 Extruding Volume Kg/hr 100-120 120-200 180-270 200-320 Screw rotation rate r/min 10-86 10-86 10-86 10-86 Extruder heating power KW 20.2 21.6 26 32 Extruder driving power KW 30 37 45 45 Power consumption DHB80 DHB90 DHB100 DHB110 Driving power KW 52 76 89 130 Heating power KW 36 44 60 78
